GA-X870-AORUS-ELITE-WIFI7-ICE

Gigabyte X870 Aorus Elite WiFi 7 ICE AMD Ryzen 7000 / 8000 / 900 Series Socket ..

Gigabyte - Gigabyte X870 Aorus Elite WiFi 7 ICE AMD Ryzen 7000 / 8000 / 900 Series Socket AM5 ATX Motherboard Gigabyte X870 Aorus Elite WiFi 7 ICE AMD Ryzen 7000 / 8000 / 900 Series Socket AM5 ATX Motherboard, AMD X870 Chipset, 4x DDR5 DIMM Memory slots, 2x USB4 USB Type-C Ports, Supporting USB4 and DisplayPort Video, 1x HDMI Port, Realtek 2.5GbE LAN Chip, MediaTek Wi-Fi 7, Bluetooth 5.4, 1x PCI Express x16 slot (PCIEX16), 1x PCI Express x16 slot supporting PCI-e 4.0 and running at x4, 1x PCI Express x16 slot supporting PCI-e 3.0 and running at x2, 4x SATA 6Gb/s connectors, 4x M.2 Socket 3 connectors PCIe 5.0 x4/x2, USB 3.2 Gen 1 Ports, USB 2.0/1.1 Ports, USB Type-C Port with USB 3.2 Gen 2x2 support, USB 3.2 Gen 2 Type-A Ports, 1x Q-Flash Plus Button, 1x Optical S/PDIF out connector, 2x audio jacks
No stock at suppliers. print


GA-X870-AORUS-ELITE-WIFI7-ICE Gigabyte X870 Aorus Elite WiFi 7 ICE AMD Ryzen 7000 / 8000 / 900 Series Socket AM5 ATX Motherboard Image 2
GA-X870-AORUS-ELITE-WIFI7-ICE Gigabyte X870 Aorus Elite WiFi 7 ICE AMD Ryzen 7000 / 8000 / 900 Series Socket AM5 ATX Motherboard Image 3
GA-X870-AORUS-ELITE-WIFI7-ICE Gigabyte X870 Aorus Elite WiFi 7 ICE AMD Ryzen 7000 / 8000 / 900 Series Socket AM5 ATX Motherboard Image 4
GA-X870-AORUS-ELITE-WIFI7-ICE Gigabyte X870 Aorus Elite WiFi 7 ICE AMD Ryzen 7000 / 8000 / 900 Series Socket AM5 ATX Motherboard Image 5
Not rated yet



Rate this product

Prices, images and descriptions are for reference purposes only & may change without prior notice. PLEASE RELY ON ABOVE DESCRIPTIONS AND NOT ON IMAGES. GA-X870-AORUS-ELITE-WIFI7-ICE Gigabyte X870 Aorus Elite WiFi 7 ICE AMD Ryzen 7000 / 8000 / 900 Series Socket AM5 ATX Motherboard is available from Gigabyte Laptops and it is sold as new from our Power supply unit / PC PSU range of products. For reference purposes, the price of R6660 is valid 2026-08-24, and while stocks last, may be valid until . The price displayed is a guide for reference purposes only, and may change without prior notice. Reference prices are an invitation for potential buyers to make an offer to purchase, which we may reject without reason. A quote with final pricing is sent before a purchase can be made. T&C's apply. E&OE. Laptop Direct. You are looking at products found in the Power supply unit / PC PSU category.
Subscribe

Specification for the entire series

Important information: Kindly note that specifications differ between models. Features, options and accessories displayed below this paragraph are not included with this product unless it has been specified in the above description.


Please remember these important points when reading the information below this paragraph: Operating systems cannot be removed or changed, monitors are not included with computers, free Anti-virus and Office Software are trial versions or may have limited features and an additional license needs to be purchased to activate the full product.

GA-X870-AORUS-ELITE-WIFI7-ICE

Gigabyte X870 Aorus Elite WiFi 7 ICE AMD Ryzen 7000 / 8000 / 900 Series Socket AM5 ATX Motherboard

Gigabyte X870 Aorus Elite WiFi 7 ICE AMD Ryzen 7000 / 8000 / 900 Series Socket AM5 ATX Motherboard, AMD X870 Chipset, 4x DDR5 DIMM Memory slots, 2x USB4 USB Type-C Ports, Supporting USB4 and DisplayPort Video, 1x HDMI Port, Realtek 2.5GbE LAN Chip, MediaTek Wi-Fi 7, Bluetooth 5.4, 1x PCI Express x16 slot (PCIEX16), 1x PCI Express x16 slot supporting PCI-e 4.0 and running at x4, 1x PCI Express x16 slot supporting PCI-e 3.0 and running at x2, 4x SATA 6Gb/s connectors, 4x M.2 Socket 3 connectors PCIe 5.0 x4/x2, USB 3.2 Gen 1 Ports, USB 2.0/1.1 Ports, USB Type-C Port with USB 3.2 Gen 2x2 support, USB 3.2 Gen 2 Type-A Ports, 1x Q-Flash Plus Button, 1x Optical S/PDIF out connector, 2x audio jacks

Overview:

X870 AORUS ELITE WIFI7 ICE
  • AMD Socket AM5:Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
  • Digital twin 16+2+2 phases VRM solution
  • Dual Channel DDR5:4*DIMMs with AMD EXPO Memory Module Support
  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch Plus:PCIe and M.2 slots with Quick Release & Screwless Design
  • EZ-Latch Click:M.2 heatsinks with screwless design
  • Sensor Panel Link:Onboard video port for hassle-free in-chassis panel setup
  • Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
  • Ultra-Fast Storage:4*M.2 slots, including 3* PCIe 5.0 x4
  • Efficient Thermal:VRM Thermal Armor Advanced & M.2 Thermal Guard L
  • Fast Networking:2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
  • Extended Connectivity:Dual USB4 Type-C with DP-Alt, HDMI
  • Reliable Audio:Realtek ALC1220 HD Audio & Audiophile Grade Capacitors
  • Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
  • PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card

Features:

AORUS AI SNATCH Bullet Point
Unleash Ultimate Performance with One-Click Activation.

Auto DDR5 Memory Boost
With just a single click, unleash the full potential of DDR5 memory, instantly boosting your gaming and work efficiency.

One-Click Acceleration:
Enhance DDR5 speeds with a single click.

Fast AI Performance
Accelerate AI processing for greater performance

Maximize performance in a snap
Enable users to easily become overclocking experts through a simple interface.

Smart & Safe overclocking
Protect your motherboard through multiple over-temperature and over-current safeguards.

With faster computations, it also means reduced power consumption, making it more environmentally friendly and energy-efficient, continuously contributing to the well-being of our planet.

Zenith of the Memory
AORUS gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

Exclusive BIOS Design
Advanced BIOS functionality provides seamless optimization of industry-leading DDR5 memory performance.

AMD EXPO Settings
Optimize memory with AMD's user-friendly profiles.

Unmatched Hardware Excellence
Elevate your gaming with our state-of-the-art technology for a superior experience.

6-Layer Server-Grade PCB
Check Out Our Revolutionary DDR5 Technology

Unleash Revolutionary DDR5 Technology
Maximize DDR5 performance with our groundbreaking technology for an unparalleled gaming experience.
  • Shielded Memory Routing
  • Advanced shielding inside the PCB keeps your memory signals clean and interference-free.
  • Daisy-Chained Routing
  • Innovative design removes signal bottlenecks, allowing for blazing-fast memory speeds and a superior gaming setup.
  • 6-layer Server-grade PCB
  • Top-of-the-line server-grade PCB material minimizes signal loss, providing ultra-fast DDR5 data transmission.
Steady Power
Better Play AORUS Series, steady power keeps your gaming smooth.

Digital Twin VRM Design
Delivers consistent, high-powered performance to elevate your overclocking to the next level.

Comprehensive Thermal
AORUS motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.

VRM Thermal Armor Fins-Array
These solid heatsinks are forged to keep your system cool.

Optimal DRAM Installation Indicator
The DRAM Indicator LED will turn on when a module is installed into a non-recommended slot.

Q-FLASH Auto Scan
The new Auto Scan function featues when using USB flashdrive during Q-Flash Auto Scan, the BIOS file will be auto scanned instead of searching manually.

Q-FLASH Plus
Effortlessly upgrade your BIOS without the need to install CPU, RAM, or GPU.

EZ-Latch Designs
User-friendly designs simplifying the assembly process.

M.2 EZ-Latch Click
screwless installation for M.2 heatsink

Specifications:

© 2024 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specificationsspacer
Product CodeGA-X870-AORUS-ELITE-WIFI7-ICEspacer
CPUAMD Socket AM5, support for:
AMD Ryzen 9000 Series Processors / AMD Ryzen 8000 Series Processors / AMD Ryzen 7000 Series Processors
ChipsetAMD X870
MemorySupport for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO ) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard GraphicsIntegrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller:
- 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
* Support for DisplayPort 1.4 version and HDR.
Integrated Graphics Processor with AMD Radeon Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support native HDMI 2.1 TMDS compatible ports.
- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
* Support for HDMI 1.4 version
(Graphics specifications may vary depending on CPU support.)
Support for up to quad-display at the same time
AudioRealtek ALC1220 CODEC
* The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
LANRealtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication moduleMediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
**Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
Expansion Slots1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
* The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.
When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector.
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
Storage Interface1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
* The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 processor is used.
1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USBCPU+ASMedia USB4 controller:
- 2 x USB4 USB Type-C ports on the back panel
CPU+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports on the back panel
CPU+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
Chipset:
- 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through
the internal USB header
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x power button
1 x reset button
2 x temperature sensor headers
1 x reset jumper
1 x Clear CMOS jumper

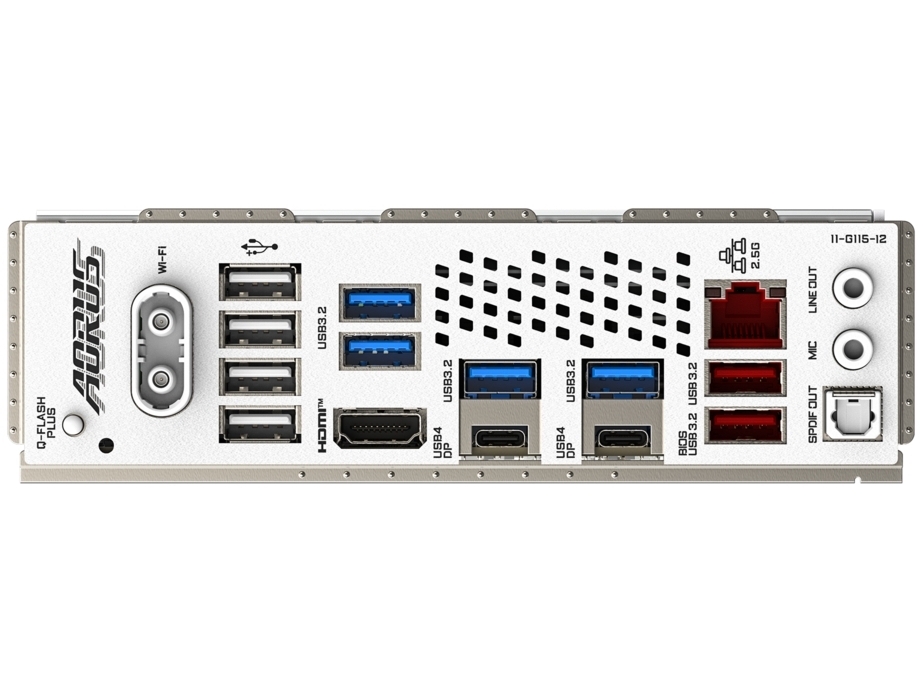

Back Panel Connectors1 x Q-Flash Plus button
1 x HDMI port (Note)
2 x antenna connectors (2T2R)
2 x USB4 USB Type-C ports (DisplayPort (Note))
2 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
I/O ControlleriTE I/O Controller Chip
H/W MonitoringVoltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
Noise detection
BIOS1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique FeaturesSupport for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support Smart Backup
Bundled SoftwareNorton Internet Security (OEM version)
LAN bandwidth management software
Operating SystemSupport for Windows 11 64-bit
Form FactorATX Form Factor; 30.5cm x 24.4cm
