GV-N5080WF3OC-16GD

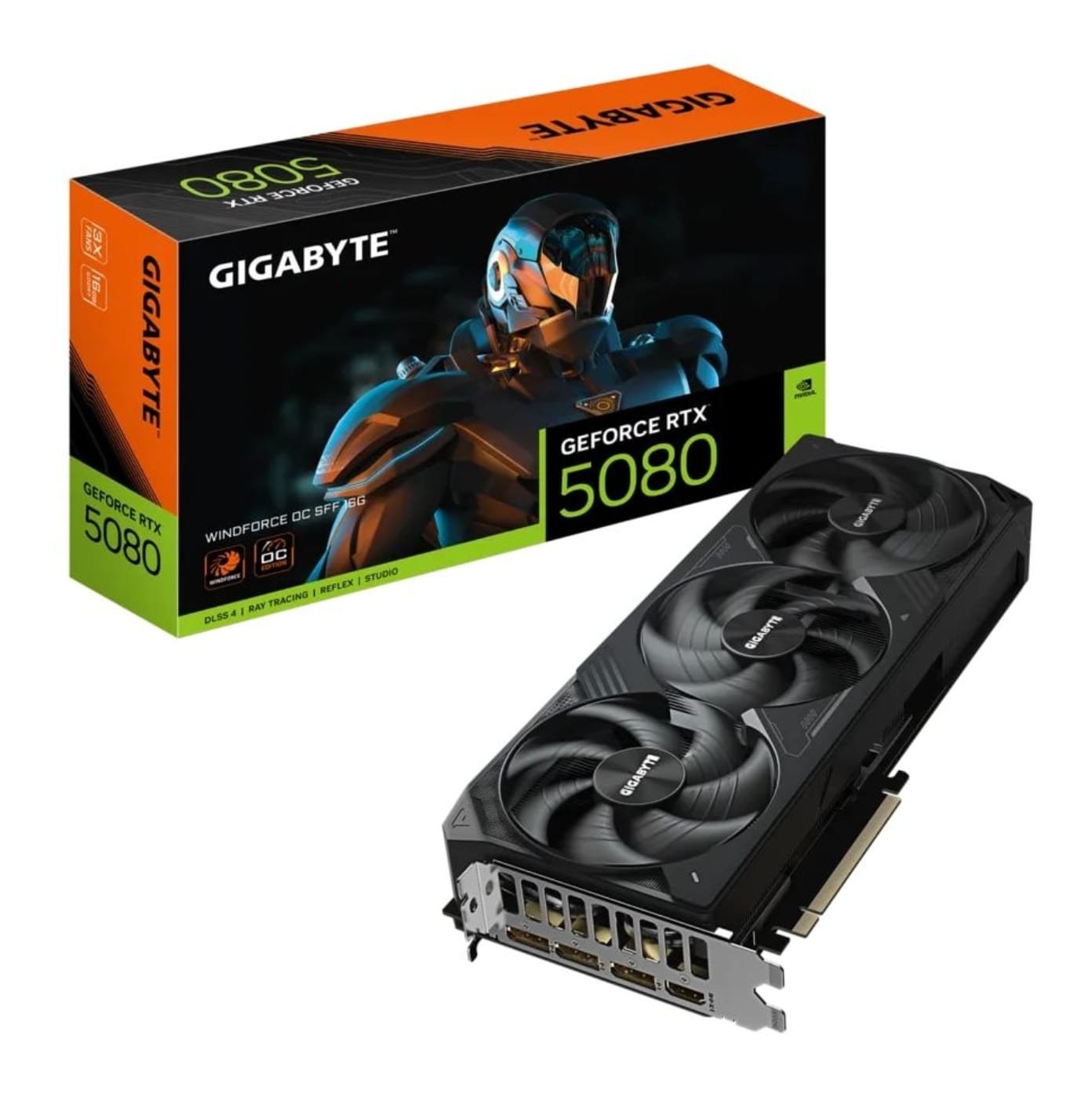

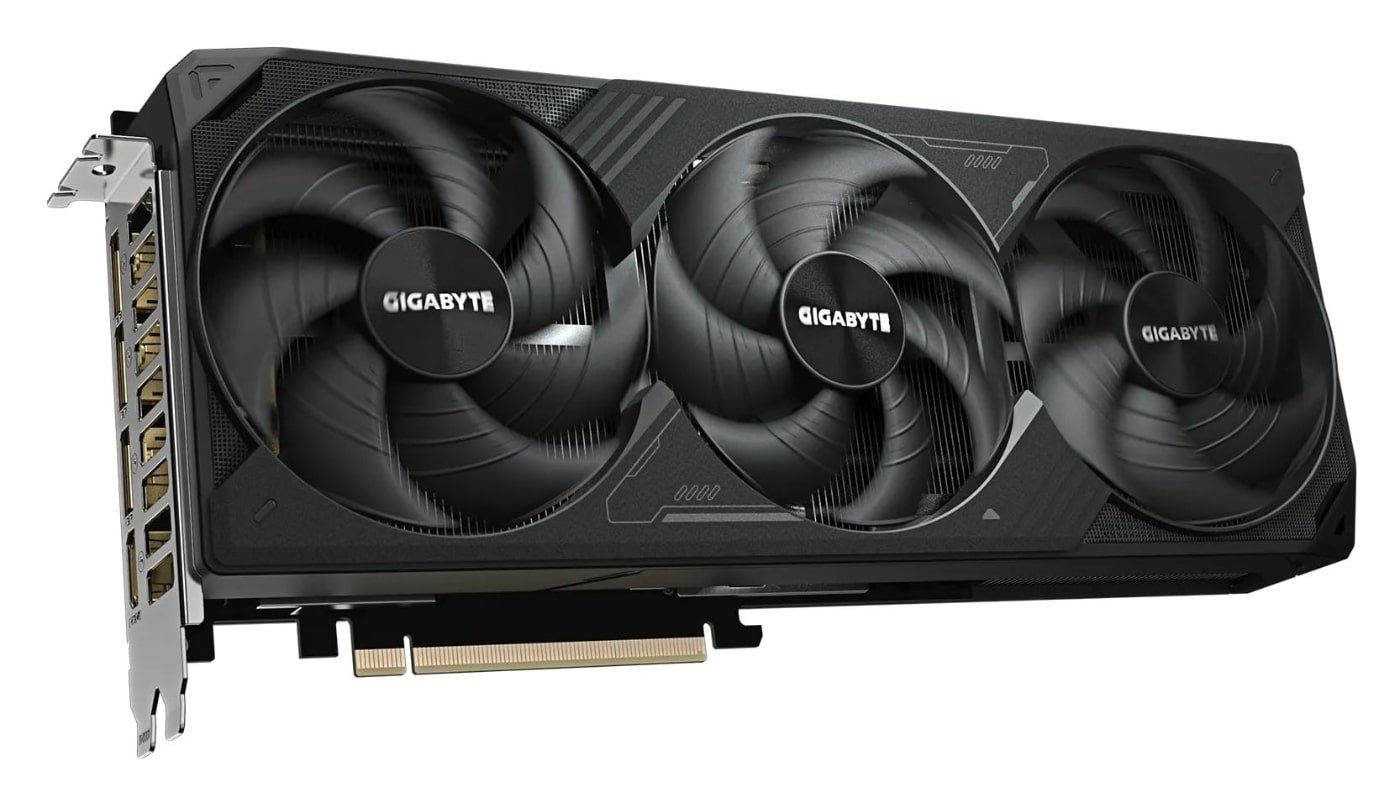

GIGABYTE nVidia GeForce RTX 5080 WINDFORCE OC SFF 12GB GDDR7

GIGABYTE nVidia GeForce RTX 5080 WINDFORCE OC SFF - 12GB GDDR7 HDMIx1/DPx3

Description

The GIGABYTE RTX 5080 WINDFORCE OC is a powerhouse graphics card built for high-resolution gaming and next-level content creation. Featuring NVIDIA's Blackwell architecture and 10752 CUDA cores, it delivers exceptional AI-enhanced graphics, ray tracing, and compute performance. With 16GB of high-speed GDDR7 memory on a 256-bit interface and a 30Gbps memory clock, this GPU handles intensive workloads and future-proof games with ease.

WINDFORCE cooling ensures stable operation using Hawk fans, vapor chamber cooling, and composite heatpipes. The dual BIOS switch lets users select between Performance and Silent modes, and a reinforced metal backplate strengthens the card structurally. Designed with small form factor readiness, robust thermal control, and ultra-durable components, this card balances raw power with premium build quality for gamers, creators, and professionals.

Quick Specifications

• 2670MHz Core Clock, 10752 CUDA Cores
• 16GB GDDR7 Memory, 256-bit Interface, 30Gbps
• PCIe 5.0 x16, 3 x DisplayPort 2.1b, 1 x HDMI 2.1b
• WINDFORCE Cooling with Hawk Fans, Dual BIOS
• Reinforced Structure, 1 x 16-pin Power Connector

Features:

• Powered by GeForce RTX(TM) 5080
• Powered by NVIDIA Blackwell architecture with DLSS 4 support
• GeForce RTX 5080 GPU with 10752 CUDA cores
• 16GB GDDR7 memory on a 256-bit interface, 30Gbps memory clock
• Core clock at 2670MHz (OC mode)
• WINDFORCE cooling system with Hawk fans and alternate spinning
• Graphene nano lubricant and server-grade thermal gel for enhanced durability
• Large vapor chamber and composite copper heat pipes for efficient heat transfer
• Dual BIOS switch for Performance and Silent modes
• NVIDIA SFF-ready compact design for high-performance small builds
• Reinforced backplate with bent edge design for structural strength
• Versatile VGA holder with custom mount options to prevent GPU sag
• Ultra Durable components with 2oz copper PCB and solid capacitors
• Supports NVIDIA Reflex 2, DLSS 4, ACE, G-SYNC, and Studio tools
• GIGABYTE Control Center for real-time performance adjustments

Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4

New Streaming Multiprocessors
Optimized for neural shaders

Fourth-Gen Ray Tracing Cores
Built for Mega Geometry

AI-Enhanced Graphics and Performance
NVIDIA DLSS 4 with Multi Frame Generation

Game-Winning Responsiveness
NVIDIA Reflex 2 with Frame Warp

True-to-Life Graphics
Full ray tracing with neural rendering

Digital Humans and AI Assistants
NVIDIA ACE

Accelerate Your Creativity
NVIDIA Studio creator tools and technology

Enhance Any Video with AI
NVIDIA Broadcast and ninth-gen NVIDIA Encoder

Performance and Reliability
NVIDIA app with Game Ready and Studio Drivers

The Ultimate Gaming Display Technologies
NVIDIA G-SYNC

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling.

HAWK FAN
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

SERVER-GRADE THERMAL CONDUCTIVE GEL
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.

LARGE VAPOR CHAMBER & COMPOSITE COPPER HEAT PIPE
The large vapor chamber directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.

DUAL BIOS (Performance / Silent)
The factory default setting is Performance mode, which provides users with the best performance. However, switching to Silent mode will enjoy a quieter experience.

NVIDIA SFF-READY
Complying with NVIDIA's small form factor specification, our graphics cards pack powerful performance into a small form factor, achieving the perfect balance of size and power.

REINFORCED STRUCTURE
The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.

VERSATILE VGA HOLDER
Our newly designed VGA holder offers dozens of customizable mounting options, ensuring your graphics card is securely supported and prevents sagging. Its sleek design allows for discreet installation, enhancing the overall aesthetics of your system.

ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

POWER THROUGH THE GAME
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.

GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Specifications:

© 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	GV-N5080WF3OC-16GD
Graphics Processing	GeForce RTX 5080
Core Clock	2670 MHz (Reference: 2617 MHz)
CUDA Cores	10752
Memory Clock	30 Gbps
Memory Size	16GB
Memory Type	GDDR7
Memory Bus	256 bit
Card Bus	PCI-E 5.0
Digital max resolution	7680 x 4320
Multi-view	4
Card size	L=304 W=126 H=50 mm
PCB Form	ATX
DirectX	DirectX 12 API
OpenGL	OpenGL 4.6
Recommended PSU	850W
Power Connectors	16 pin*1
Output	DisplayPort 2.1b x3
	HDMI 2.1b x1
Accessories	1. VGA manual
	2. 1x 12V-2x6 to 3x PCIe 8pin adapter
	3. Versatile VGA holder
	4. Versatile VGA holder manual
