MB-GB760MAEW+W

Gigabyte B760M Aorus Elite WiFi AMD Ryzen 7000 / 8000 / 9000 Series Socket AM5 ..

Gigabyte - Gigabyte B760M Aorus Elite WiFi AMD Ryzen 7000 / 8000 / 9000 Series Socket AM5 ATX Motherboard Gigabyte B760M Aorus Elite WiFi AMD Ryzen 7000 / 8000 / 9000 Series Socket AM5 ATX Motherboard, INTELB760 Express Chipset, 4x DDR5 DIMM Memory slots, 1x HDMI Port, 1x DisplayPort, Realtek 2.5GbE LAN Chip, Intel Wi-Fi 6E, Bluetooth 5.3, 1x PCI Express x16 slot supporting PCI-e 4.0 and running at x16, 1x PCI Express x16 slot supporting PCI-e 4.0 and running at x4, 2x M.2 connector supports up to PCI-e 4.0 x4/x2 SSD, 4x SATA 6Gb/s connectors, USB Type-C Port on the back panel with USB 3.2 Gen 2x2 support, USB 3.2 Gen 2 Type-A Port, USB 3.2 Gen 1 Port, USB 2.0/1.1 Ports, USB 3.2 Gen 1 Ports, 1x Q-Flash Plus Button, 1x Optical S/PDIF out connector, 2x audio jacks

MB-GB760MAEW+W Gigabyte B760M Aorus Elite WiFi AMD Ryzen 7000 / 8000 / 9000 Series Socket AM5 ATX Motherboard Image 2
MB-GB760MAEW+W Gigabyte B760M Aorus Elite WiFi AMD Ryzen 7000 / 8000 / 9000 Series Socket AM5 ATX Motherboard Image 3
MB-GB760MAEW+W Gigabyte B760M Aorus Elite WiFi AMD Ryzen 7000 / 8000 / 9000 Series Socket AM5 ATX Motherboard Image 4
MB-GB760MAEW+W Gigabyte B760M Aorus Elite WiFi AMD Ryzen 7000 / 8000 / 9000 Series Socket AM5 ATX Motherboard Image 5
Not rated yet



Rate this product

4%
Price Drop
Prices, images and descriptions are for reference purposes only & may change without prior notice. PLEASE RELY ON ABOVE DESCRIPTIONS AND NOT ON IMAGES. MB-GB760MAEW+W Gigabyte B760M Aorus Elite WiFi AMD Ryzen 7000 / 8000 / 9000 Series Socket AM5 ATX Motherboard is available from Gigabyte Laptops and it is sold as new from our Motherboards: AMD Socket AM5 Motherboard range of products. For reference purposes, the price of R4275 is valid 2026-10-13, and while stocks last, may be valid until . The price displayed is a guide for reference purposes only, and may change without prior notice. Reference prices are an invitation for potential buyers to make an offer to purchase, which we may reject without reason. A quote with final pricing is sent before a purchase can be made. T&C's apply. E&OE. Laptop Direct. You are looking at products found in the Motherboards: AMD Socket AM5 Motherboard category.
Subscribe

Specification for the entire series

Important information: Kindly note that specifications differ between models. Features, options and accessories displayed below this paragraph are not included with this product unless it has been specified in the above description.


Please remember these important points when reading the information below this paragraph: Operating systems cannot be removed or changed, monitors are not included with computers, free Anti-virus and Office Software are trial versions or may have limited features and an additional license needs to be purchased to activate the full product.

MB-GB760MAEW+W

Gigabyte B760M Aorus Elite WiFi AMD Ryzen 7000 / 8000 / 9000 Series Socket AM5 ATX Motherboard

Gigabyte B760M Aorus Elite WiFi AMD Ryzen 7000 / 8000 / 9000 Series Socket AM5 ATX Motherboard, INTELB760 Express Chipset, 4x DDR5 DIMM Memory slots, 1x HDMI Port, 1x DisplayPort, Realtek 2.5GbE LAN Chip, Intel Wi-Fi 6E, Bluetooth 5.3, 1x PCI Express x16 slot supporting PCI-e 4.0 and running at x16, 1x PCI Express x16 slot supporting PCI-e 4.0 and running at x4, 2x M.2 connector supports up to PCI-e 4.0 x4/x2 SSD, 4x SATA 6Gb/s connectors, USB Type-C Port on the back panel with USB 3.2 Gen 2x2 support, USB 3.2 Gen 2 Type-A Port, USB 3.2 Gen 1 Port, USB 2.0/1.1 Ports, USB 3.2 Gen 1 Ports, 1x Q-Flash Plus Button, 1x Optical S/PDIF out connector, 2x audio jacks

Overview:

B760M AORUS ELITE AX (rev. 1.x)
  • Supports Intel Core 14th/ 13th /12th processors
  • Unparalleled Performance:Twin 12*+1+1 Phases Digital VRM Solution
  • Dual Channel DDR5:4*SMD DIMMs with XMP 3.0 Memory Module Support
  • Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard :To Ensure VRM Power Stability & M.2 SSD Performance
  • EZ-Latch Plus:M.2 Connectors with Quick Release & Screwless Design
  • Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity:Front USB-C 10Gb/s, Rear USB-C 20Gb/s, DP, HDMI
  • Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
* 6+6 phases parallel power design

Features:

Unparalleled Performance
  • Twin Digital VRM Design
  • PCIe 4.0 Design
  • Unlock DDR5
  • Dual PCIe 4.0 M.2
PerfDrive
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.

Smart Fan 6
GIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.

CONNECTIVITY
  • 802.11ax Wi-Fi 6E
  • 2.5GbE LAN
  • Rear USB-C20Gb/s
  • Front USB-C10Gb/s
Hi-Fi Audio
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.

Q-Flash Plus
GIGABYTE Ultra Durable design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.

Specifications:

© 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specificationsspacer
Product CodeMB-GB760MAEW+Wspacer
CPULGA1700 socket: Support for the 14th, 13th, and 12th Generation IntelCore, PentiumGold and CeleronProcessors
L3 cache varies with CPU
ChipsetIntelB760 Express Chipset
MemorySupport for DDR5 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Onboard GraphicsIntegrated Graphics Processor-IntelHD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.)
AudioRealtekAudio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
LANRealtek2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication moduleIntelWi-Fi 6E AX211 (For PCB rev. 1.0)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard RealtekWi-Fi 6E RTL8852CE (For PCB rev. 1.1)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Expansion SlotsCPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) Support for AMD CrossFireX technology
Storage InterfaceCPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USBChipset:
1 x USB Type-Cport on the back panel, with USB 3.2 Gen 2x2 support
1 x USB Type-Cport with USB 3.2 Gen 2 support, available through the internal USB header
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
1 x USB 3.2 Gen 1 port on the back panel
4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports on the back panel
Internal I/O Connectors1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-Cheader, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

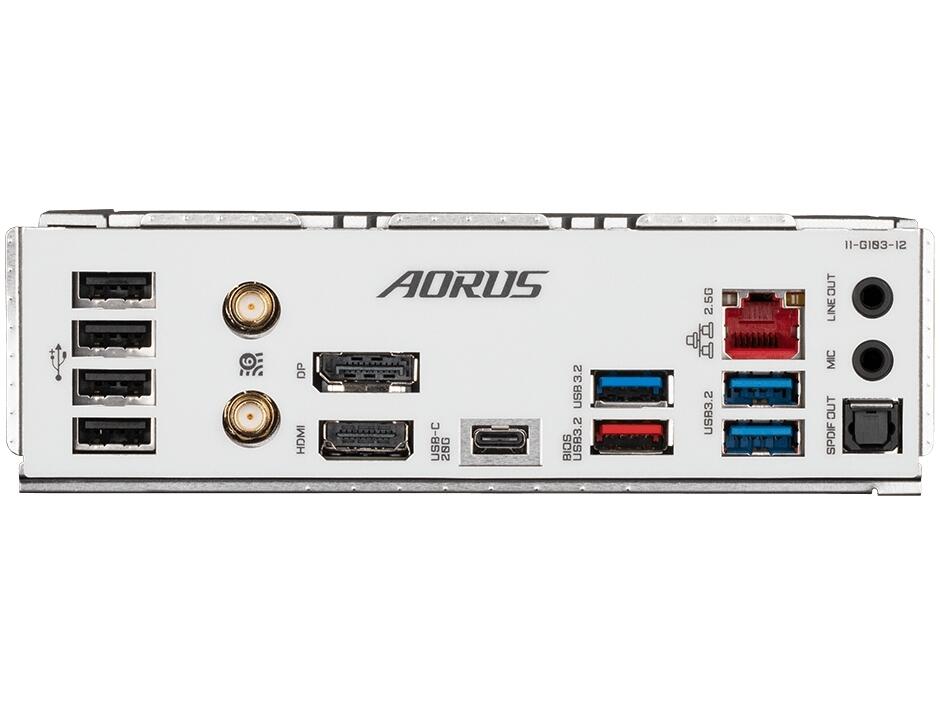

Back Panel Connectors2 x SMA antenna connectors (2T2R)
1 x USB Type-Cport, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
I/O ControlleriTEI/O Controller Chip
H/W MonitoringVoltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique FeaturesSupport for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Bundled SoftwareNortonInternet Security (OEM version)
LAN bandwidth management software
Operating SystemSupport for Windows 11 64-bit
Support for Windows 10 64-bit
Form FactorMicro ATX Form Factor , 24.4cm x 24.4cm
