MB-GB860MD3HP

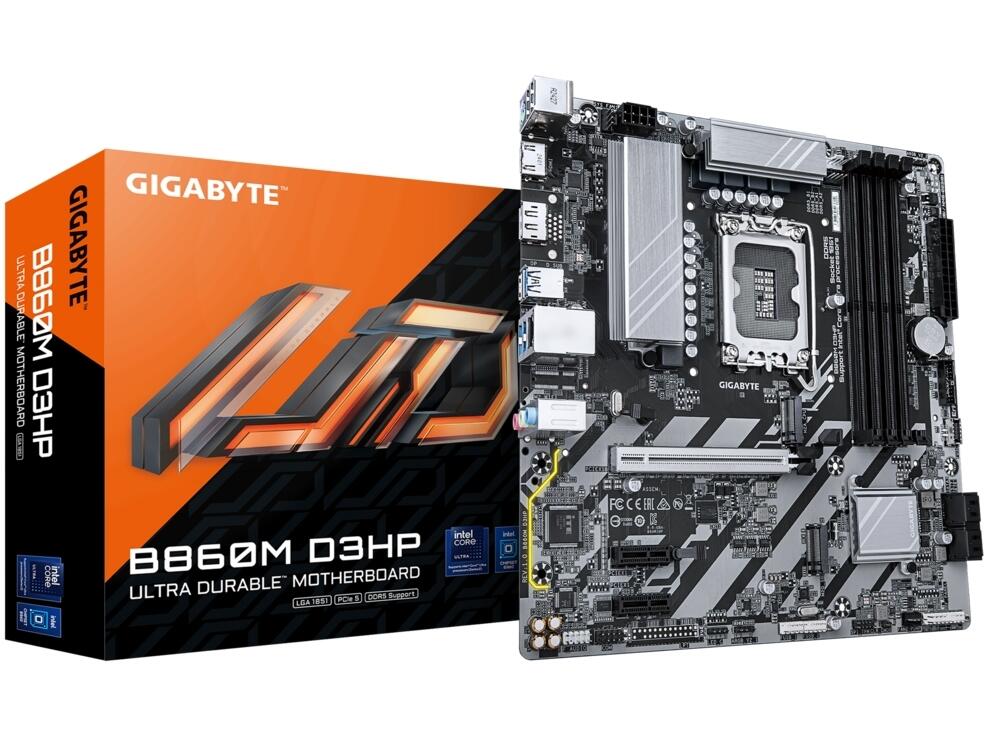

Gigabyte B860M D3HP Intel Core Ultra Socket LGA 1851 mATX Motherboard

Gigabyte - Gigabyte B860M D3HP Intel Core Ultra Socket LGA 1851 mATX Motherboard, Intel B860 Express Chipset, 4x DDR5 DIMM Memory slots, 1x HDMI Port, 1x DisplayPort, Realtek GbE LAN Chip, 1x PCI Express x16 slot supporting PCI-e 5.0 and running at x16, 2x PCI Express x1 slots supporting PCI-e 3.0 and running at x1, 2x M.2 connector supports up to PCI-e 4.0 x4/x2 SSD, 4x SATA 6Gb/s connectors, USB Type-C Port with USB 3.2 Gen 1 support, USB 3.2 Gen 1 Ports, USB 2.0/1.1 Ports, 1x Serial Port Header, 1x PS/2 Keyboard/Mouse Port, 3x audio jacks
BUY NOW ! Supplier stock not confirmed, but might be in stock.* print

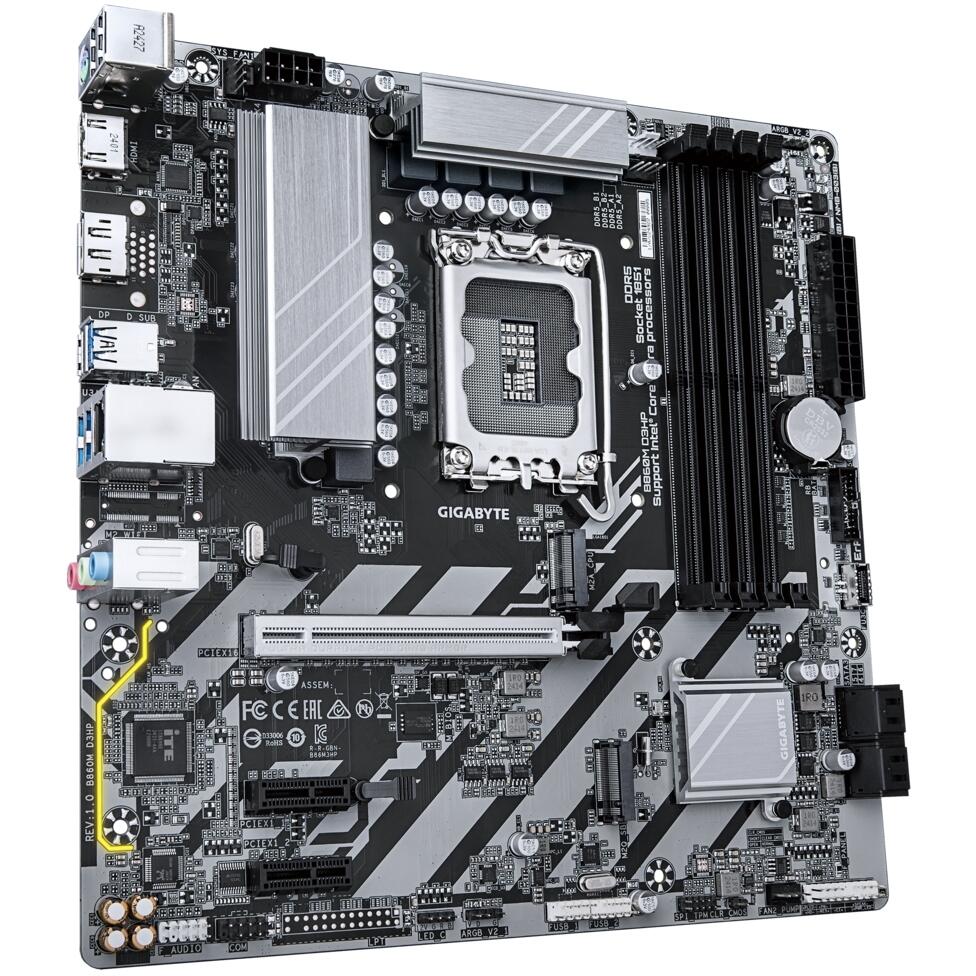

MB-GB860MD3HP Gigabyte B860M D3HP Intel Core Ultra Socket LGA 1851 mATX Motherboard Image 2
MB-GB860MD3HP Gigabyte B860M D3HP Intel Core Ultra Socket LGA 1851 mATX Motherboard Image 3
MB-GB860MD3HP Gigabyte B860M D3HP Intel Core Ultra Socket LGA 1851 mATX Motherboard Image 4
Not rated yet



Rate this product

Specials
Prices, images and descriptions are for reference purposes only & may change without prior notice. PLEASE RELY ON ABOVE DESCRIPTIONS AND NOT ON IMAGES. MB-GB860MD3HP Gigabyte B860M D3HP Intel Core Ultra Socket LGA 1851 mATX Motherboard is available from Gigabyte Laptops and it is sold as new from our Motherboards: Intel LGA1851 Core Ultra range of products. For reference purposes, the price of R3005 is valid 2025-01-14, and while stocks last, may be valid until . The price displayed is a guide for reference purposes only, and may change without prior notice. Reference prices are an invitation for potential buyers to make an offer to purchase, which we may reject without reason. A quote with final pricing is sent before a purchase can be made. T&C's apply. E&OE. Laptop Direct. You are looking at products found in the Motherboards: Intel LGA1851 Core Ultra category.
Subscribe

Specification for the entire series

Important information: Kindly note that specifications differ between models. Features, options and accessories displayed below this paragraph are not included with this product unless it has been specified in the above description.


Please remember these important points when reading the information below this paragraph: Operating systems cannot be removed or changed, monitors are not included with computers, free Anti-virus and Office Software are trial versions or may have limited features and an additional license needs to be purchased to activate the full product.

MB-GB860MD3HP

Gigabyte B860M D3HP Intel Core Ultra Socket LGA 1851 mATX Motherboard

Gigabyte B860M D3HP Intel Core Ultra Socket LGA 1851 mATX Motherboard, Intel B860 Express Chipset, 4x DDR5 DIMM Memory slots, 1x HDMI Port, 1x DisplayPort, Realtek GbE LAN Chip, 1x PCI Express x16 slot supporting PCI-e 5.0 and running at x16, 2x PCI Express x1 slots supporting PCI-e 3.0 and running at x1, 2x M.2 connector supports up to PCI-e 4.0 x4/x2 SSD, 4x SATA 6Gb/s connectors, USB Type-C Port with USB 3.2 Gen 1 support, USB 3.2 Gen 1 Ports, USB 2.0/1.1 Ports, 1x Serial Port Header, 1x PS/2 Keyboard/Mouse Port, 3x audio jacks

Overview:

B860M D3HP
  • Supports Intel  Core Ultra processors (Series 2)
  • Hybrid 4+1+2 phases VRM solution
  • D5 Bionic Corsa for Infinite Memory Performance
  • AI Perfdrive : Provides optimal and customized BIOS preset profile for users
  • EZ-Latch : PCIe x16 Slot with Quick Release Design
  • Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
  • Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
  • Fast Networking : GbE LAN
  • Extended Connectivity : DisplayPort, HDMI
Features:

Infinite Memory Performance
UD motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

HyperTune BIOS
AI-Driven Advanced BIOS Optimization Technology

Durable Performance
GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform.

Hybrid VRM Design
The best VRM design ever built with the highest quality components. Delivers enhanced system performance with ultimate hardware scalability.

Comprehensive Thermal
UD motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.

M.2 Thermal Guard
The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.



Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

802.11ax Wi-Fi 6E
The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.


2.5GbE LAN
Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.

PCIe 5.0 / 4.0 Hardware Design
Featuring PCIe 5.0 x16 slot and PCIe 5.0 / 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 5.0 / 4.0 devices to provide the superior performance.



Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

WIFI EZ-Plug
The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.

EZ Debug Zone
Centralized debug LEDs and control buttons provide a handy and organized troubleshooting process when building a new computer.


EZ-Latch Designs
User-friendly designs simplifying the assembly process.

PCIe EZ-Latch
Easy ejection with single click for graphics cards

M.2 EZ-Latch Click
screwless installation for M.2 heatsink

M.2 EZ-Latch Plus
screwless installation for M.2 SSDs

UC BIOS
Restructured with user-centered and intuitive performance adjustment mechanisms.

Q-FLASH Auto Scan
The new Auto Scan function featues when using USB flashdrive during Q-Flash, the BIOS file will be auto scanned instead of searching manually.


Specifications:

© 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specificationsspacer
Product CodeMB-GB860MD3HPspacer
CPULGA1851 socket: Support for Intel Core Ultra Processors
L3 cache varies with CPU
ChipsetIntel B860 Express Chipset
MemorySupport for DDR5 9066(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard GraphicsIntegrated Graphics Processor-Intel HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version.
(Graphics specifications may vary depending on CPU support.)
AudioRealtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LANRealtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion SlotsCPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Storage InterfaceCPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USBChipset:
- 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
- 3 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
2 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper
Back Panel Connectors3 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x DisplayPort
1 x HDMI port
3 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks
* Actual support may vary by CPU.
I/O ControlleriTE I/O Controller Chip
H/W MonitoringVoltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique FeaturesSupport for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Smart Backup
Bundled SoftwareNorton Internet Security (OEM version)
LAN bandwidth management software
Operating SystemSupport for Windows 11 64-bit
Support for Windows 10 64-bit
* The Intel NPU driver is only supported on Windows 11.
Form FactorMicro ATX Form Factor , 24.4cm x 24.4cm
